The Double CLUTCH Twin Tension Rope System (TTRS) Kit is a complete, best-practice hauling and lowering solution built around the versatile CMC CLUTCH™ by Harken™. Designed for technical rescue operations, this advanced kit allows rescuers to deploy two independent rope systems at separate anchors or in a side-by-side configuration for true twin-tension operation. Organized, color-coded, and ready for rapid deployment, the kit minimizes gear sorting while providing the equipment necessary for efficient hauling, lowering, and load management.

The system utilizes two CLUTCH devices, two CAPTO™ progress-capture pulleys, and the innovative SQUID™ Rig Plate to create mechanical advantage systems including 3:1, 3:1 with change of direction, 5:1, and 9:1 configurations. The included SWIVO™ pulleys streamline transitions between hauling and lowering while improving overall system efficiency. Twin-tension systems help distribute loads between two ropes, reducing the risk associated with single-line failures while limiting shock loading and system extension should a failure occur.

Features

• Complete twin-tension hauling and lowering system for technical rescue operations
• Builds two ready-to-deploy hauling/lowering systems with 3:1 and 5:1 mechanical advantage configurations
• Supports additional 3:1 change-of-direction and 9:1 mechanical advantage systems
• CLUTCH devices provide smooth lowering control and efficient hauling performance
• Rotating ratcheting sheave increases hauling efficiency and rope management
• Anti-Panic brake and force-limiting overload protection enhance operational safety
• CAPTO progress-capture devices provide efficient hauling with overload protection

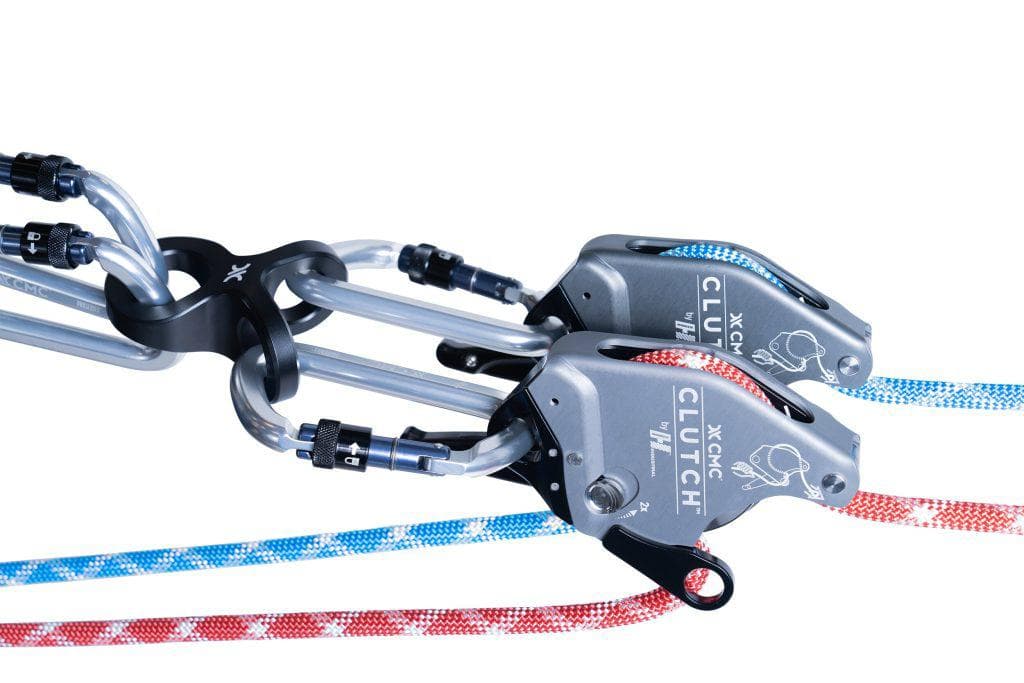

• SQUID rig plate aligns two CLUTCH devices for simultaneous operation and improved load sharing
• SWIVO pulleys simplify transitions between hauling and lowering operations
• Color-coded rope and storage systems improve organization and deployment speed
• Designed to meet modern twin-tension rescue best practices
• Custom rope lengths available upon request

Technical Gear Included

• SWIVO™ 1.1" PMP Single Pulleys (4)
• ProSeries Locking Carabiners (6)
• SQUID™ Rig Plate (1)

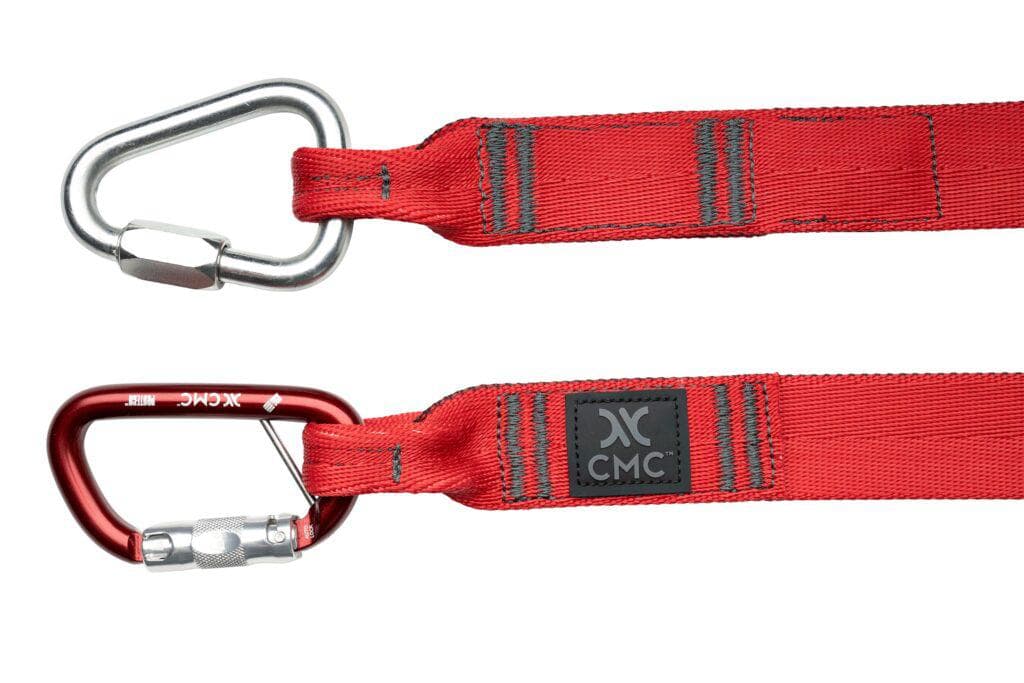

• FastLink™ Medium Anchor Straps, Red (2)
• 8 mm Sewn Loop Prusiks, Red, 18 in (2)
• CAPTO Soft Shackles (2)

Edge Protection Included

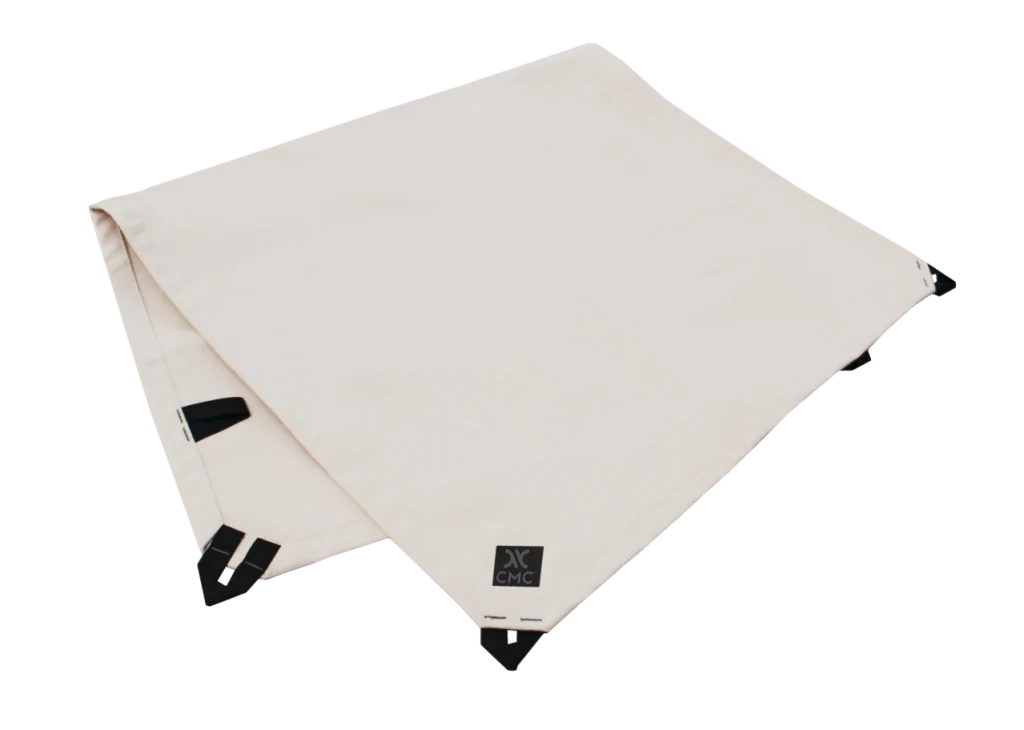

• XL Edge Pads (2)
• Medium Anchor Strap Sleeves (2)

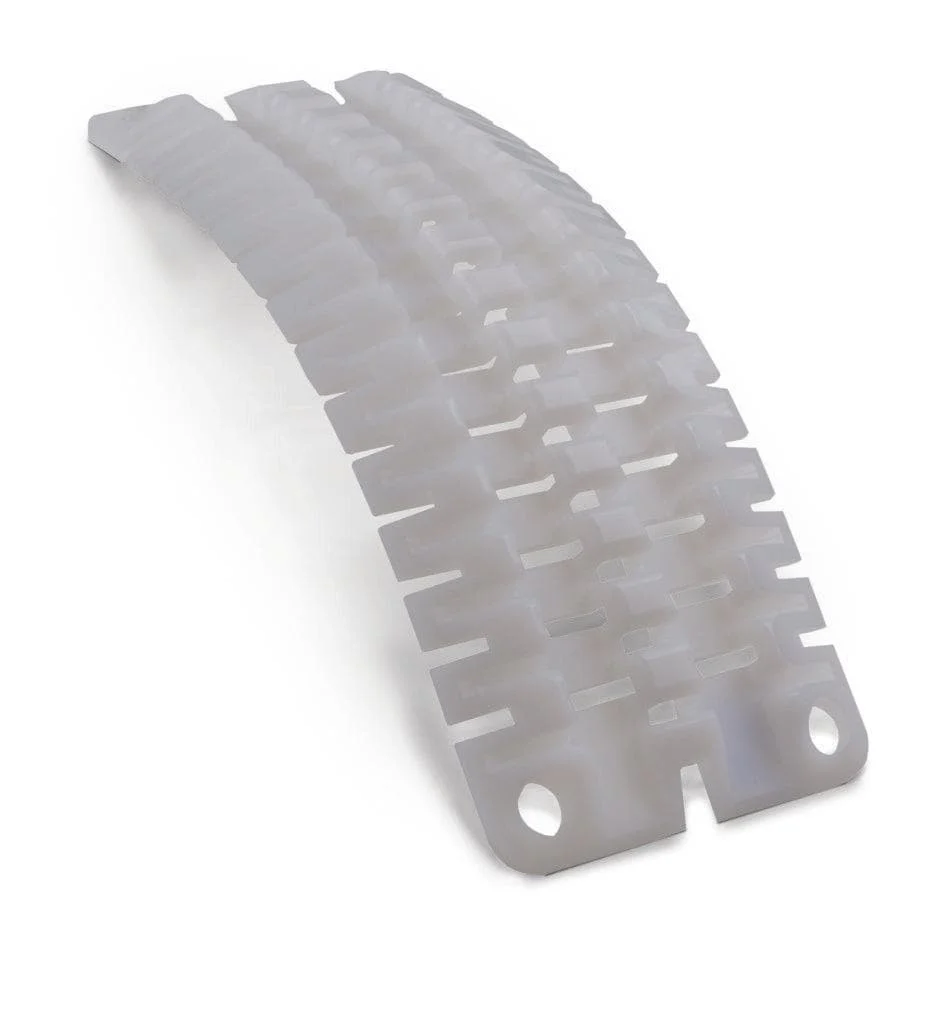

• Ultra Pro 2 Edge Protectors (2)

11 mm Kit Includes

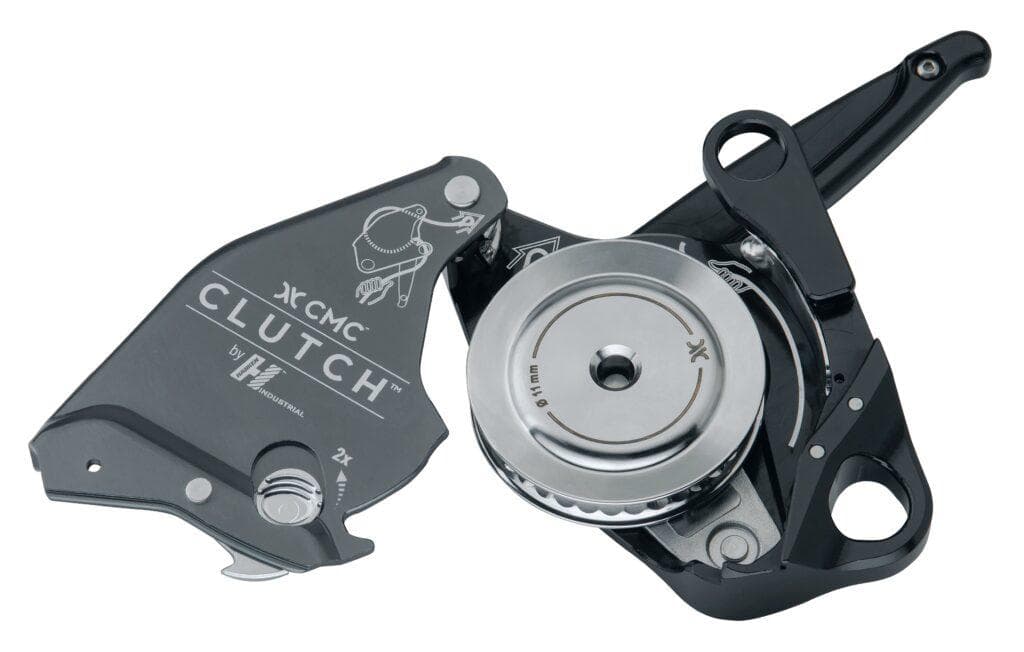

• CLUTCH™ 11 mm Devices (2)
• CAPTO™ 11 mm Devices (2)
• CMC G11™ Rope, Blue/White, 200 ft (1)
• CMC G11™ Rope, Red/White, 200 ft (1)
• RigTech Pack, Red (1)
• RigTech Pack, Blue (1)

Each RigTech Pack can accommodate up to 300 ft of 11 mm rope with the included equipment.

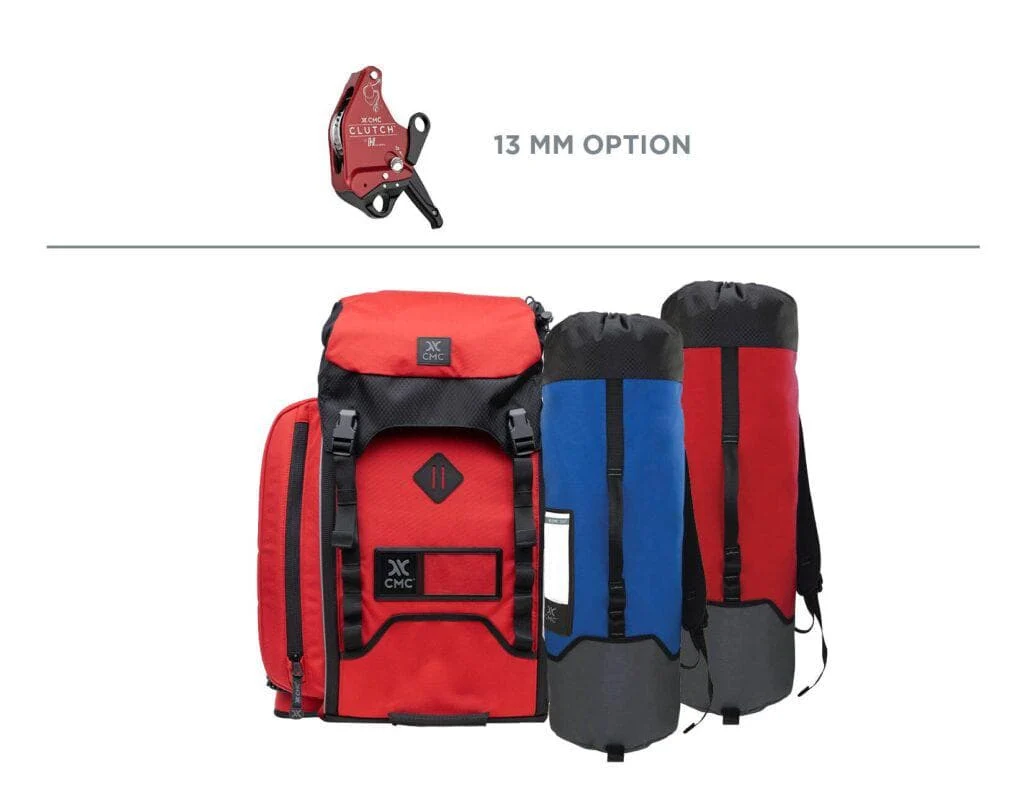

13 mm Kit Includes

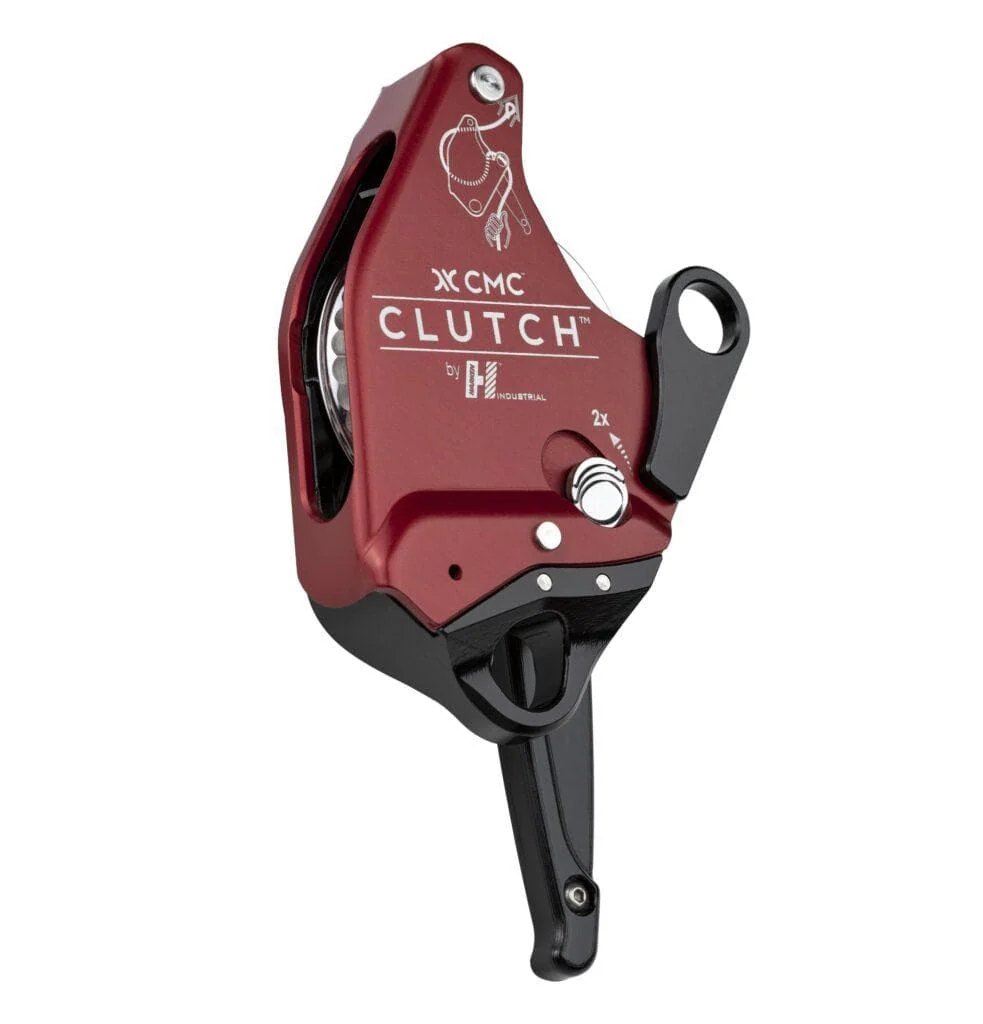

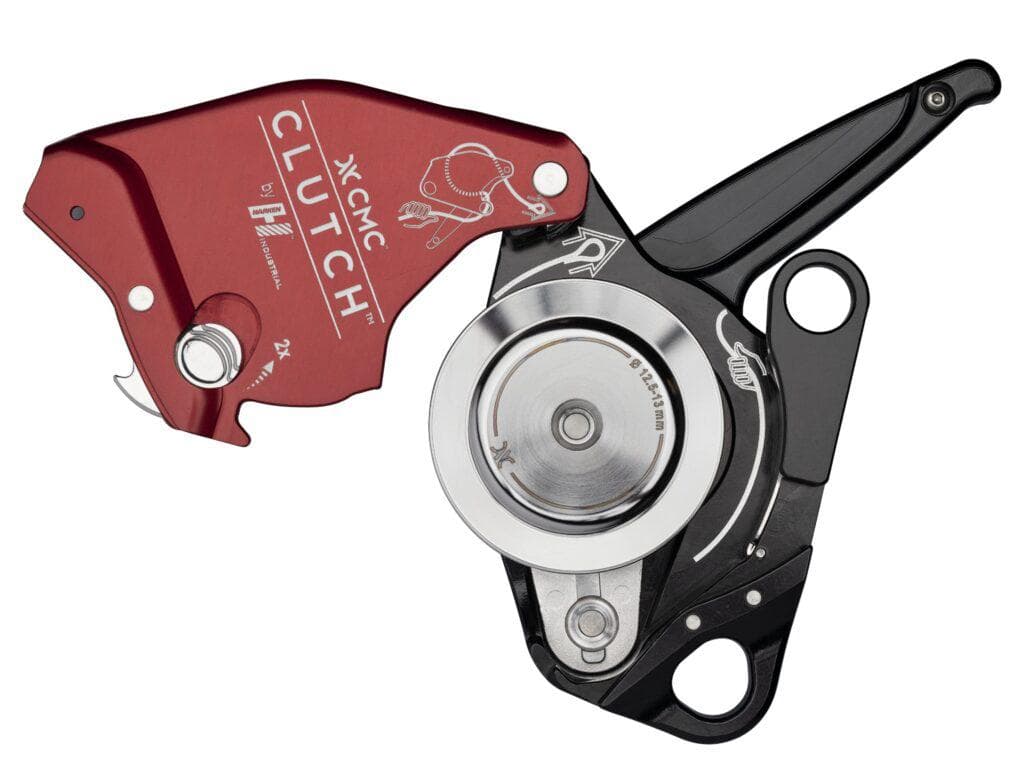

• CLUTCH™ 13 mm Devices (2)
• CAPTO™ 13 mm Devices (2)
• Static-Pro™ Rope, Blue, 200 ft (1)
• Static-Pro™ Rope, Red, 200 ft (1)
• RigTech Pack, Red (1)
• Rope Bag #2, Red (1)
• Rope Bag #2, Blue (1)

Each #2 Rope Bag can accommodate up to 200 ft of 12.5 mm rope.

Specifications

• Manufacturer: CMC
• Product Type: Twin Tension Rope System Kit
• Available Variants: 11 mm DCTTRS Kit, 13 mm DCTTRS Kit
• Item Number (11 mm): 501411
• Item Number (13 mm): 501413
• Rescue Method: Twin Tension Rope System (TTRS)
• Mechanical Advantage Configurations: 3:1, 3:1 Change of Direction, 5:1, 9:1
• Rope Length Included: 200 ft per rope (two ropes per kit)
• 11 mm Kit Rope: CMC G11™
• 13 mm Kit Rope: Static-Pro™
• Storage System: RigTech Packs and/or Rope Bags depending on configuration
