The LineScale 3i+ Load Cell is a high-strength, high-speed load monitoring device engineered for rope rescue, rope access, technical rigging, industrial testing, and load analysis applications. Milled from solid aviation-grade aluminum and certified as PPE equipment, the LineScale 3i+ provides exceptional strength, precision, and reliability while serving as a single master point in demanding rigging systems, drop tests, and twin tension rope systems.

Designed to deliver actionable data in real time, the LineScale 3i+ captures loads at up to 1,280 samples per second, ensuring accurate measurement of peak forces during dynamic events. Bluetooth connectivity and the free companion app allow users to monitor and record data remotely, while onboard memory stores up to 50 hours of logging and more than 230 million data points. The latest generation includes improved temperature compensation, enhanced torsion resistance, rounded load eyes for better textile compatibility, increased screen durability, a compact EVA hard case, and a waterproof USB flash drive. Fully equipped and ready for deployment, the LineScale 3i+ is an essential tool for rescue professionals, rope access technicians, trainers, industrial users, and rigging specialists.

Features

• High-strength load cell milled from solid aviation-grade aluminum
• 90 kN minimum breaking strength for demanding rigging applications
• Captures load data at up to 1,280 samples per second
• Bluetooth connectivity for remote monitoring and data recording
• Stores over 230 million data points and up to 50 hours of logging
• Improved temperature compensation and torsion resistance for increased accuracy
• Large digital display with selectable kgf, lbf, and kN units
• PPE certified for use in technical rescue and rope access applications
• Rounded load eyes reduce wear on ropes and textile equipment
• IP68-rated water-resistant design
• Free mobile app available for iOS and Android devices
• Suitable for rescue, rope access, industrial monitoring, stage rigging, entertainment, laboratory testing, and aerospace applications

Included Components

• LineScale 3i+ Load Cell

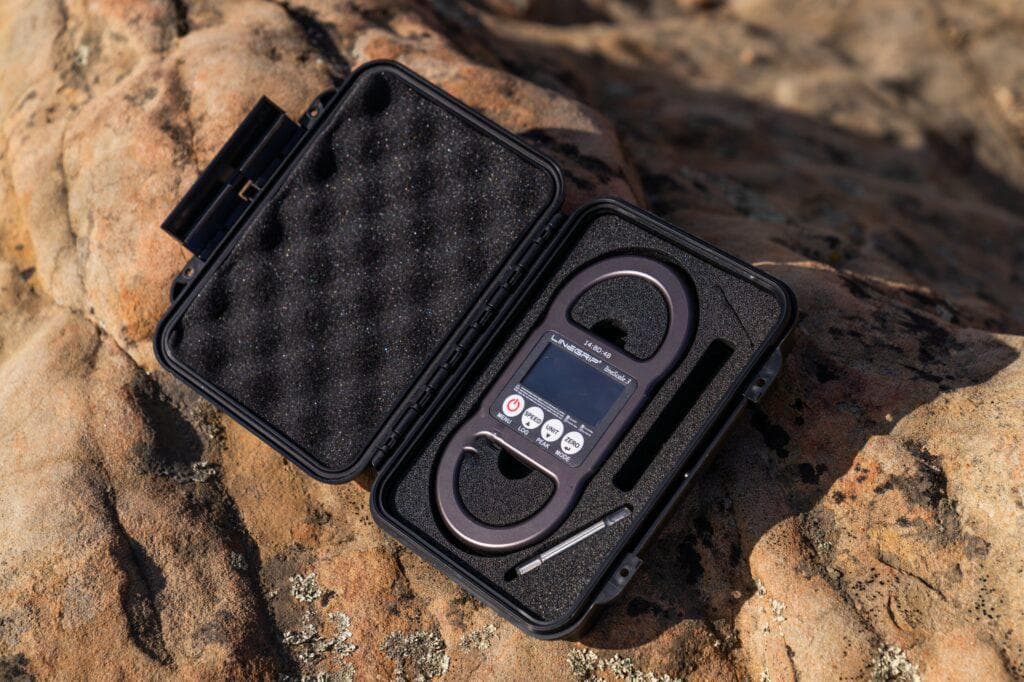

• EVA Hard Case with Padding
• Rubber Edge & Screen Protector
• Anti-Glare Screen Protector
• 4 GB USB Flash Drive and Adapter Cable
• Firmware Upgrade Dongle
• Quick Start Guide and User Manual

Specifications

• Product Name: LineScale 3i+ Load Cell
• Weight: 530 g (1.17 lb)
• Color: Gray
• Dimensions: 19 x 9 x 2 cm (7.5 x 3.5 x 0.8 in)
• Minimum Breaking Strength (MBS): 90 kN (20,232 lbf)
• Working Load Limit (WLL): 30 kN (6,744 lbf)
• Scan Rate (Onboard / USB): Fast 1,280 Hz; Slow 640 Hz
• Scan Rate (Bluetooth): Fast 40 Hz; Slow 10 Hz
• Measuring Accuracy: ±0.75%; ±0.5% from 3-15 kN
• Display Units: kgf, lbf, kN
• Storage Capacity: 50 hours of logs; 230 million data points
• Operating Endurance: 50+ hours in power-save mode; 20 hours with Bluetooth enabled
• Operating Temperature: 0°C to 40°C (32°F to 104°F); tested from -10°C to 50°C (14°F to 122°F)
• Battery Type: 3.7V 1600 mAh Lithium Polymer
• Protection Rating: IP68-0.1 (waterproof to 0.1 m for 1 hour)
• Body Material: High-Strain Aviation Aluminum LY12CZ
• Load Eye Dimensions: 5.8 x 3.7 cm (R28 D-Shape)

Certifications

• CE PPE Certified in Compliance with Regulation (EU) 2016/425
• PPE-R/11.114 V3:2021
• UIAA 130 V1:2021 Safety Label for Load-Sharing Devices
