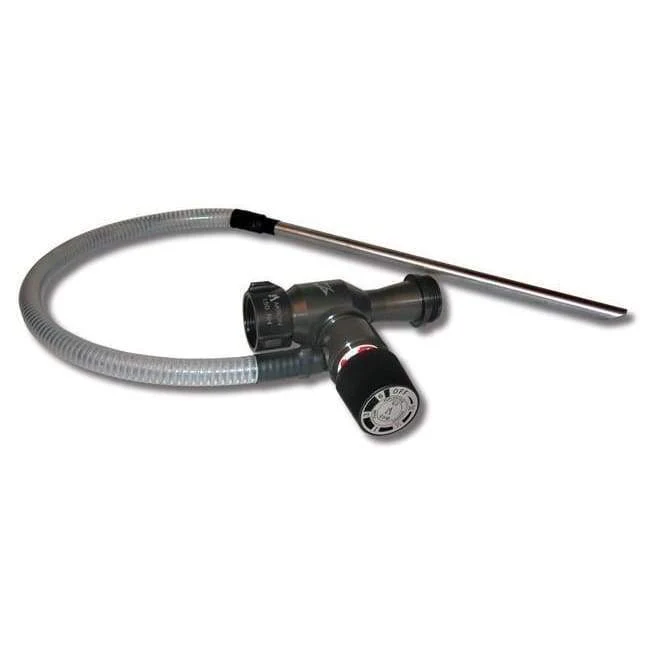

95 GPM Pyrolite® In-Line Eductor, NH Thread
The Akron Brass 95 GPM Pyrolite® In-Line Eductor is designed to accurately proportion firefighting foam concentrates into the water stream for effective fire suppression operations. Constructed from lightweight, corrosion-resistant Pyrolite®, this eductor delivers dependable performance while reducing overall equipment weight, making it ideal for municipal and industrial firefighting applications.
Featuring a large, easy-to-read removable metering dial with adjustable settings from 0% to 6%, the eductor allows operators to quickly select the desired foam concentrate ratio. Rated for 95 GPM at 200 PSI inlet pressure, it works effectively with nozzles operating between 50 and 100 PSI. A 30" pickup hose is included as standard equipment, providing a complete solution for foam proportioning operations.
Features
• Lightweight, corrosion-resistant Pyrolite® construction
• Designed for accurate foam concentrate proportioning
• Large, easy-to-read removable metering dial
• Adjustable metering settings from 0% to 6%
• Positive detents at 1/4%, 1/2%, 1%, 3%, and 6% settings
• Rated for 95 GPM flow at 200 PSI inlet pressure
• Compatible with nozzles rated from 50 to 100 PSI
• NH-threaded connections for firefighting applications
• Includes 30" pickup hose as standard equipment
• Suitable for municipal, industrial, and emergency response foam operations
Specifications
• Manufacturer: Akron Brass
• Style: 3095
• Product Type: In-Line Foam Eductor
• Material: Pyrolite®
• Flow Rate: 95 GPM (360 LPM)
• Inlet Pressure Rating: 200 PSI (14 Bar)
• Metering Range: 0% to 6%
• Metering Detents: 1/4%, 1/2%, 1%, 3%, and 6%
• Inlet Connection: 1.5" NH Swivel Inlet
• Outlet Connection: 1.5" Male NH
• Pickup Hose Length: 30" Standard
• Optional Pickup Hose Length: 48"
• Compatible Nozzle Pressure Range: 50–100 PSI (3–7 Bar)
